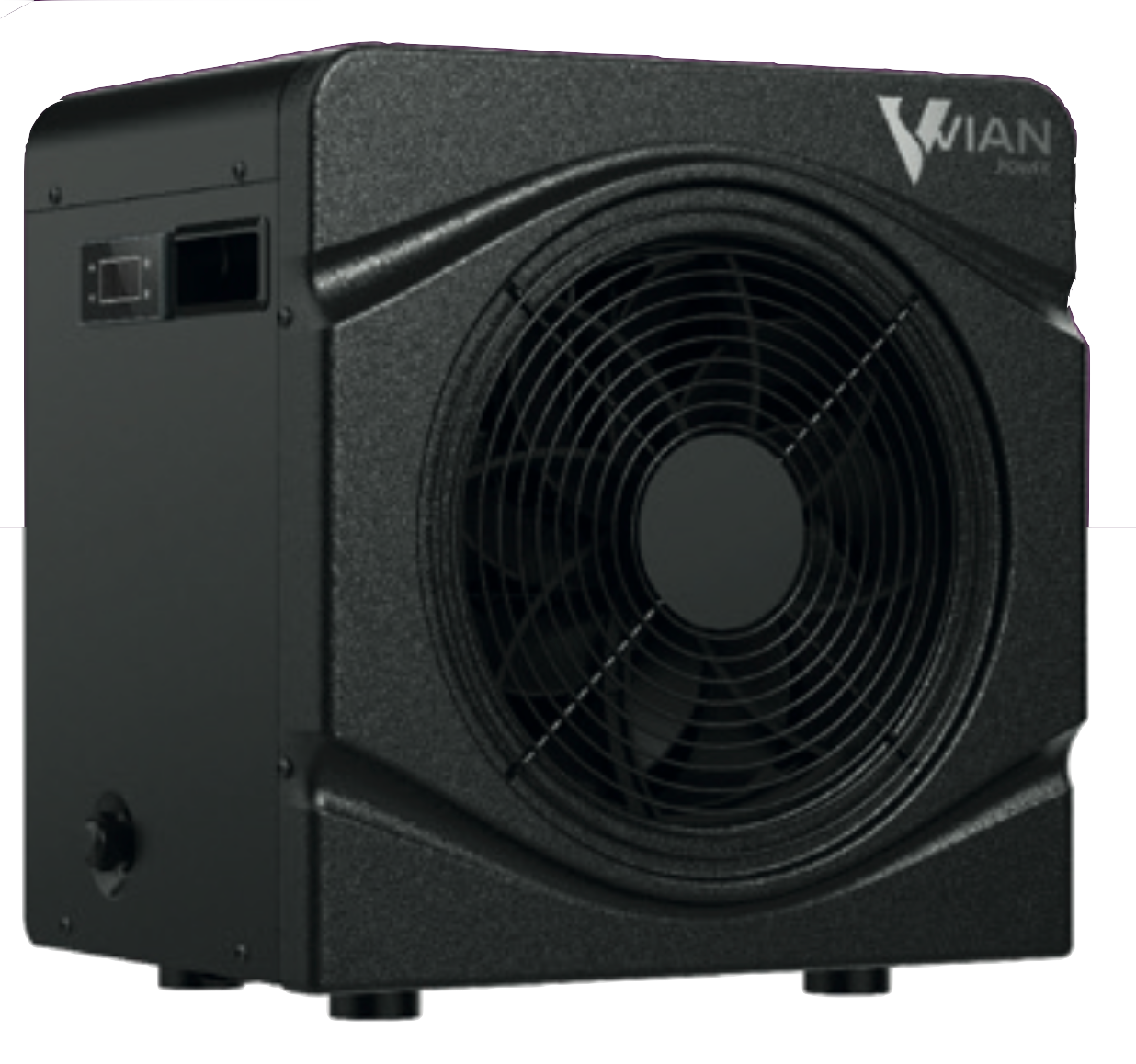

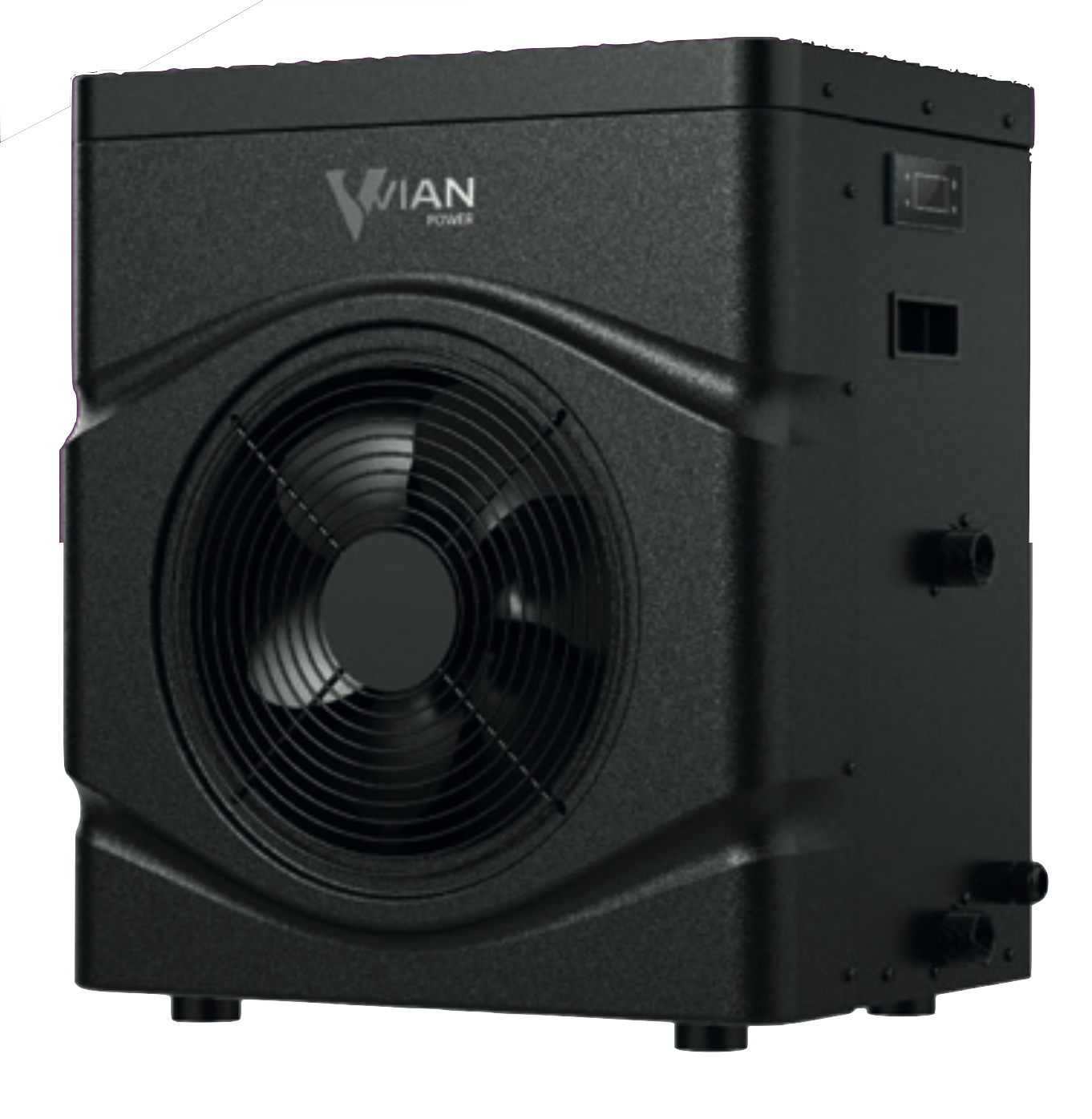

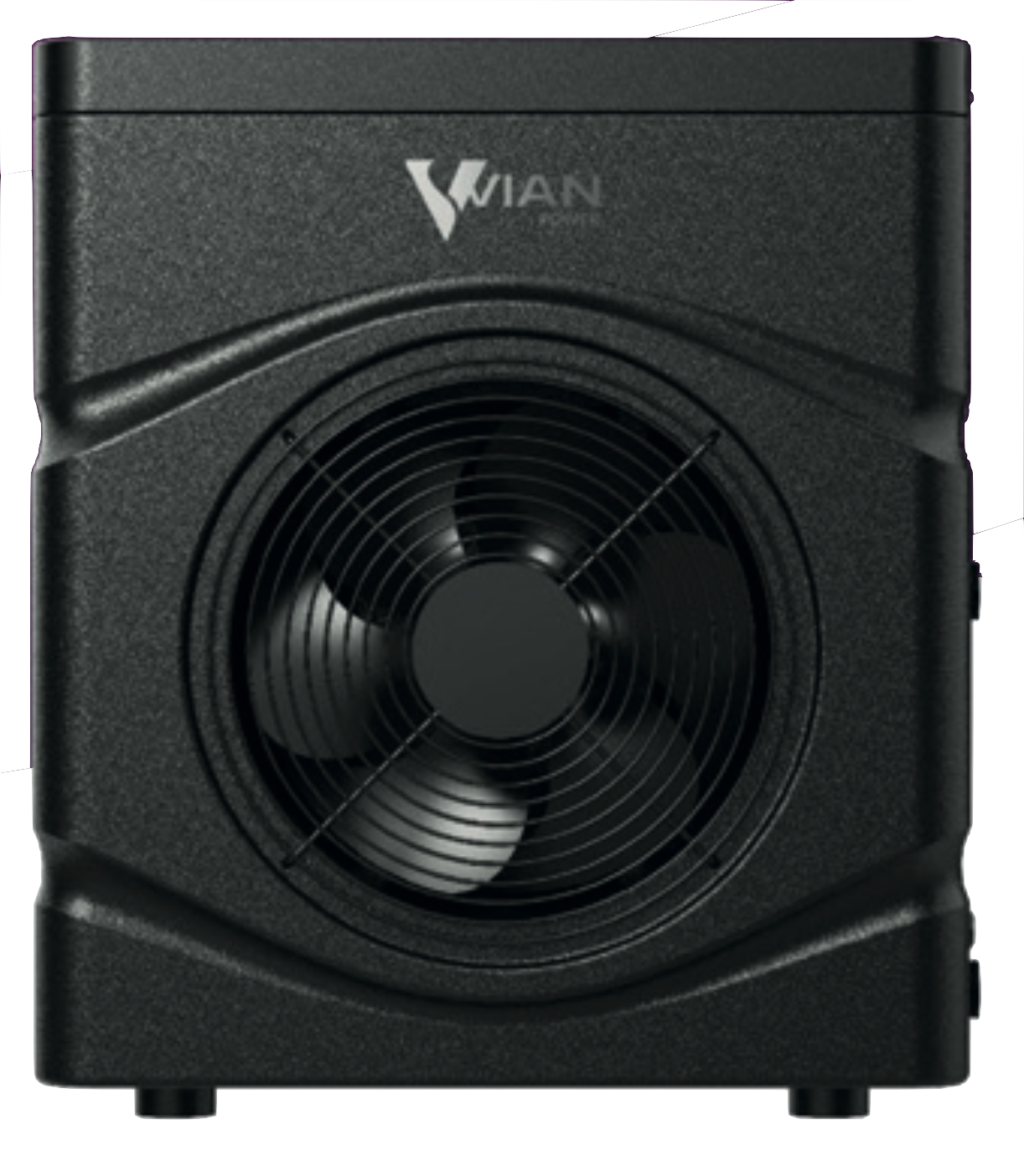

Vian C5+ Inverter 5kW Heat Pump
Vian C5+ Inverter 5kW Heat Pump
The Vian Power C5-PLUS hot tub heat pump is an advanced and compact heat pump that is perfect for hot tubs. This Full DC Inverter heat pump is capable of operating down to -10°C ambient temperature. This feature-packed high-performance model is a great choice due to its compact size. A new model, we believe, will become the most popular option for hot tubs.
* Heat pump installation costs are not included.
Log in to see prices
Delivery & Installation calculated at checkout. 10% deposit required to order.
Couldn't load pickup availability
Description
A Vian Power Air Source Heat Pump can be up to 75% more energy efficient than standard heating options. Simply put, they produce more heat (energy) than they use in electricity (energy).
This relationship between the power used by the heat pump and the heat it generates is referred to as Coefficient of Performance (CoP). For example, if a heat pump has a CoP of 8, then it will produce 8 x units of heat for every one unit of electricity consumed.
The electric heater in a hot tub or swim spa is known as a resistance heater and is very much like the element in a kettle. This resistance heater can only ever have a CoP of 1. This means for every 1 x kilowatt of power used by the electric heater then only 1 x kilowatt of heat is produced.
If compared with a standard electric heater in a hot tub, then we can easily see that an air source heat pump is a far more efficient and cost-effective way of heating your hot tub or swim spa. This is because using the example CoP of 8 then for every 1 kilowatt of power consumed by the heat pump, then 8 x kilowatts of heat are produced.
The CoP of an air source heat pump will vary depending on the ambient temperature and the mode function set on the air source heat pump.
Technology
FULL DC INVERTER models can regulate the power consumption over a much more fluid range so rather than steps or stages of power draw like a stepped inverter machine, they can vary the power they consume across their whole range. This technology makes full DC inverter heat pumps the most efficient types of machine over the long term. Full DC Inverter models are also very quiet. By using far less energy than traditional heating methods, an air source heat pump is not only good for the environment but will save hot tub and swim spa owners a considerable amount of money. It is no wonder why hundreds of owners are opting to have an air source heat pump fitted to their hot tub or swim spa.
Warranty: 5 Years Compressor & Heat Exchanger / 2 Years All Other Components

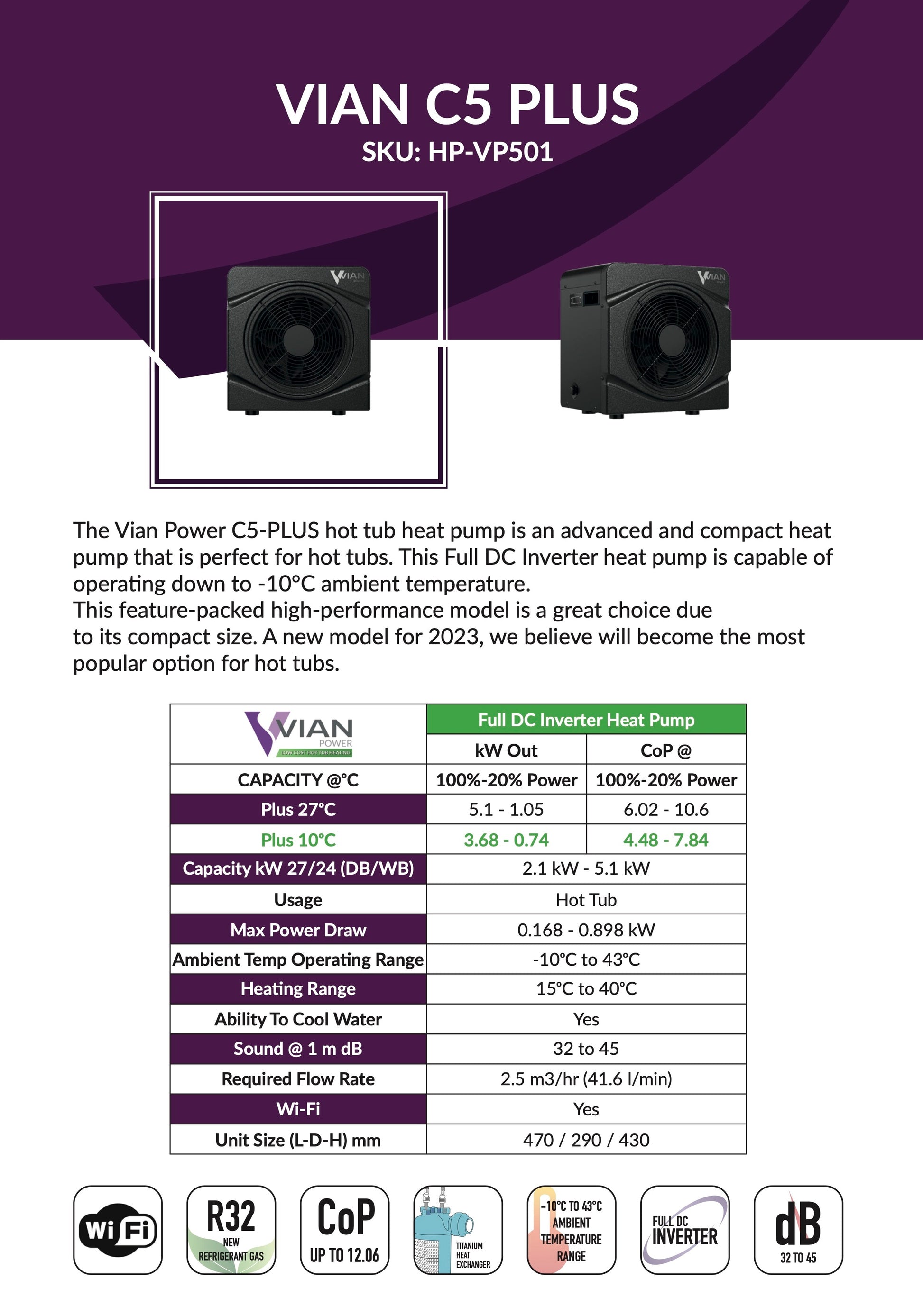

Specifications
| Model | VIAN C5+ (HP-VP501) |
| Heating Capacity: Ambient 26°C, Inlet/Outlet: 26/28°C, Humidity 80% | |
| Heating Capacity (kW) | 2.1~5.1 |
| Power Input (kW) | 0.168~0.898 |
| COP | 12.5~5.68 |
| Heating Capacity: Ambient 15°C, Inlet/Outlet: 26/28°C, Humidity 70% | |
| Heating Capacity (kW) | 1.36~3.8 |
| Power Input (kW) | 0.194~0.844 |
| COP | 7.0~4.5 |
| Cooling Capacity: Ambient 35°C, Inlet/Outlet: 27/-°C | |
| Cooling Capacity (kW) | 1.31~3.0 |
| Power Input (kW) | 0.262~1.00 |
| EER | 5.0~3.0 |
| General Information | |
| Max Power Input (kW) | 1.5 |
| Max Current (A) | 6.9 |
| Advised Pool Size (m3) | 8~20 |
| Controller | LED Controller |
| Wi-Fi Function | Yes |
| Power Supply | 220-240V~/50Hz |
| Water Temp. Heating Mode (°C) | 15~40°C |
| Running Ambient Temp. (°C) | -10~43°C |
| Refrigerant | R32 |
| Compressor Brand/Type | GMCC / Rotary |
| Manometer | Yes |
| Gas Control | EEV |
| Heat Exchanger | Titanium Heat Exchanger |
| Water Pipe Connection (mm) | φ32 or φ38 |
| Water Flow (m3/h) | 2.5 |
| Noise dB(A) | 45 |
| Net Weight(kg) | 23.5 |
| Net Dimensions(L/W/H)mm | 470*290*430 |
| Water Pressure Drop (kPa) | 12 |
| Water Proof Class | IPX4 |
HOW DOES AN AIR SOURCE HEAT PUMP WORK?
The fan in the air source heat pump draws air over a network of tubes that look a little like a car radiator. These tubes are filled with an eco-friendly R32 refrigerant. The air then passes over the tubes warming up the refrigerant and turning it from a liquid into a gas.
This gas is passed through a compressor which increases the pressure and significantly raises the temperature of the gas, which is then passed through a titanium heat exchanger.
The swim spa or hot tub’s water circulation system is plumbed through the air source heat pump and the heat from the gas travels through the heat exchanger, which in turn heats the water from the hot tub or swim spa as it passes over it.
The refrigerant then cools and turns back into a liquid and starts the process all over again.
