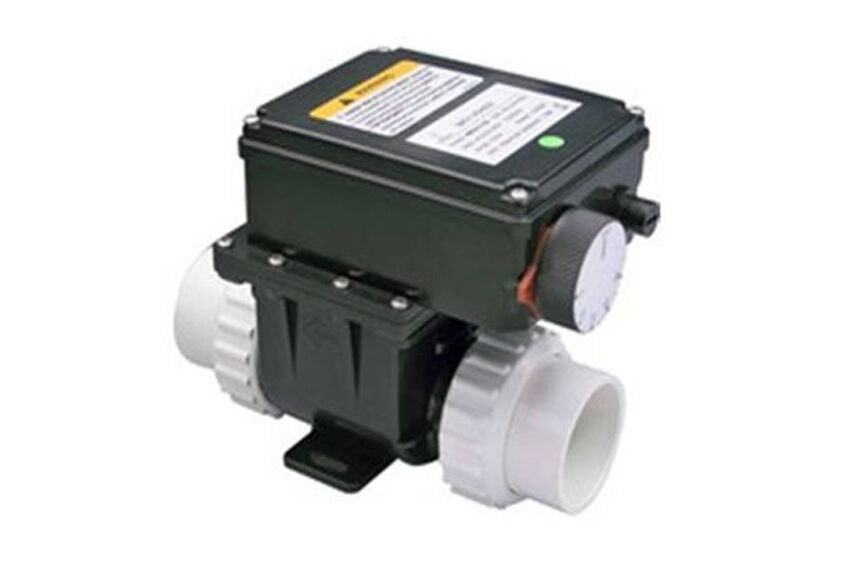

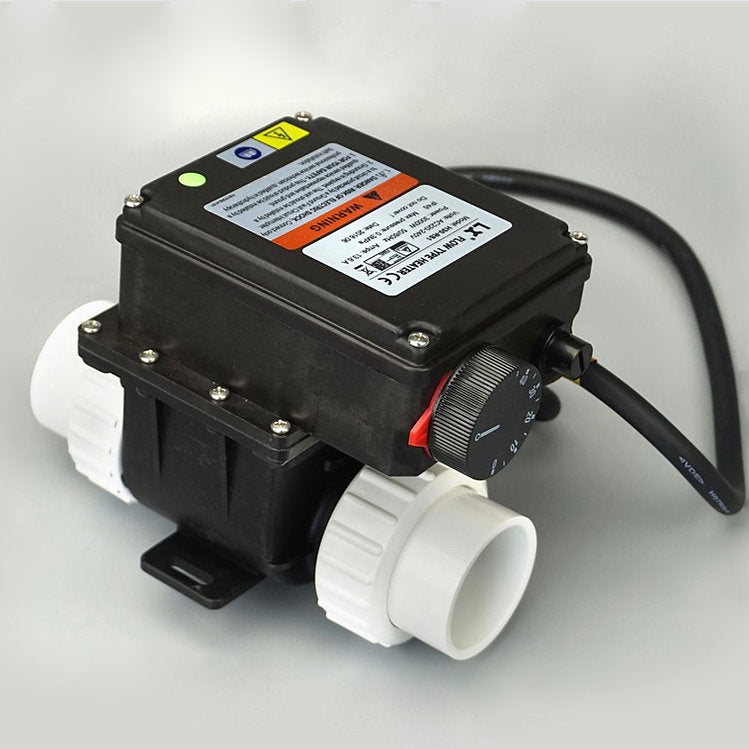

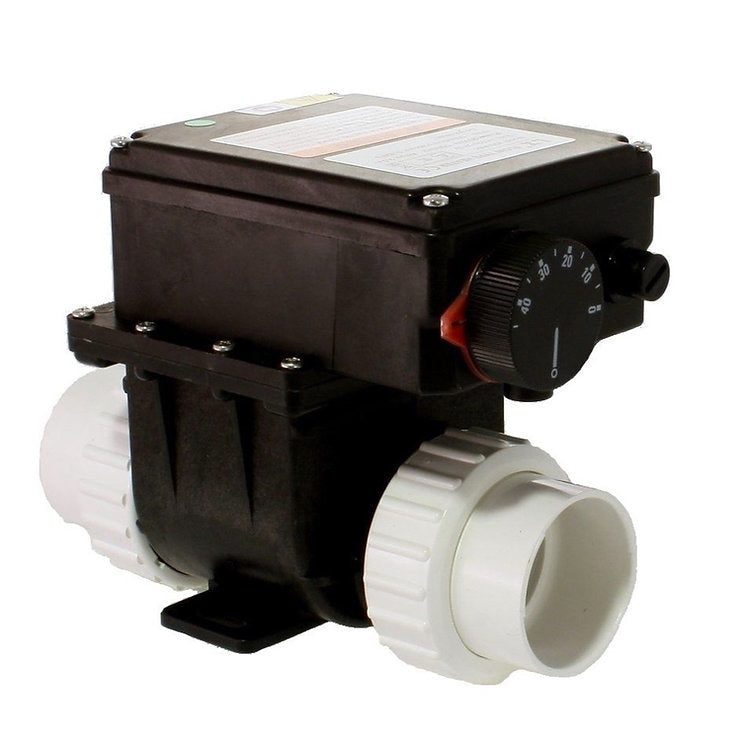

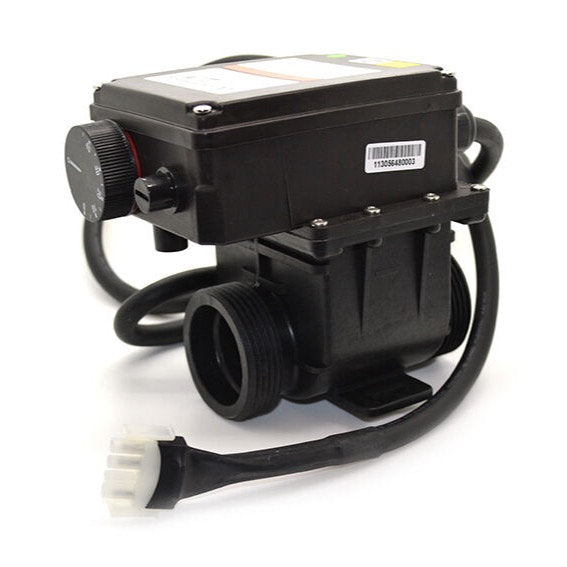

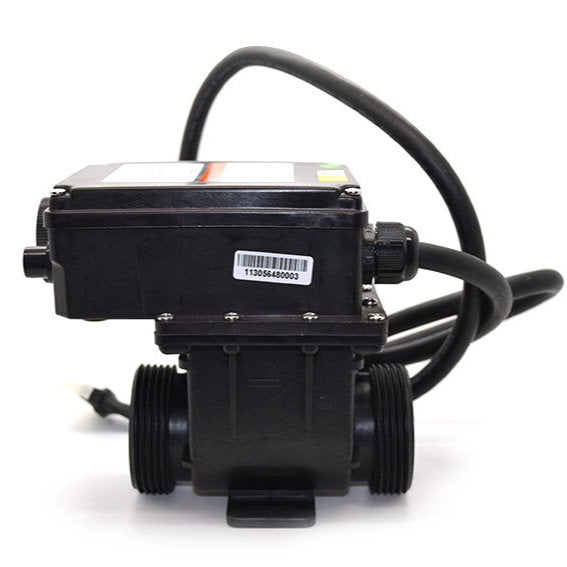

LX 3kW 1.5-inch heater with thermoregulator
LX 3kW 1.5-inch heater with thermoregulator
This heater is nicely compact in size & comes complete with an auto hi-limit safety shut off and an adjustable thermostat allowing you to set your desired temperature without the worry of the water overheating. Simple and easy to install. The LX H30-RS1 3.0KW 1.5-inch heater with thermoregulator is suitable to use to heat a spa if you don't have a boiler.
* 3kW Heater installation costs are not included.
Log in to see prices
Description
The LX 3kW Spa Heater is an ideal way to keep the spa water warmer for longer periods of time.
Sensor compatibility
Sensor built in; the heater is controlled by a thermoregulator on the side of the module.
Required flow rate
Set by the pressure switch, this switch will need to be pressurised, if it runs straight to a big bore outlet with no bends, there will be no back pressure and it may not work. Pressure switch operated by an extra cord.
Connections & Fixings
1.5" white plastic female sockets to connect to plumbing
High-limit thermal cut-out built in. This unit is rated IPX5 and has CE approval.
Please Note: All electrical spare parts MUST be fitted by a qualified electrician or Hot tub Engineer
Specifications
Weight | 1.2 kg |
Volts | 240vac |
Hz | 50/60 |
KW | 3.0 |
Amps | 13.4 |
Lengths | 170mm |
Diameter | 50 mm |
Between terminals | 120 mm |
Overall length complete | 340 mm |
Water Volume Heating Capacity | 1,285 litres |
